Schematic Engineering Industries manufacture integrated Vacuum Tray Drying (VTD) systems in both Rigid and Flexible barrier isolator design configurations.

Our VTD are used for drying of Semi wet material

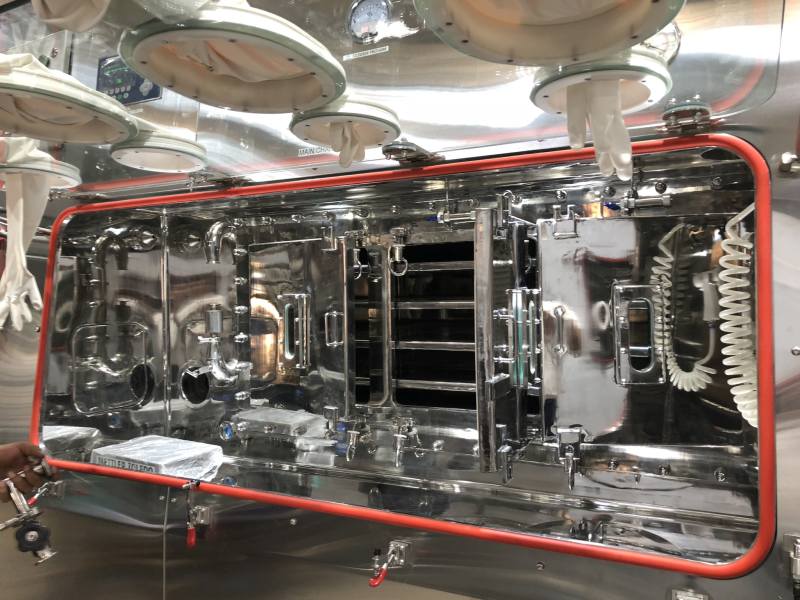

Our flexible barrier isolator VTD is shown below under the "options" tab. For high integrity operation, we manufacture rigid barrier isolator VTD systems to suit client requirements. An example of an integrated Schematic 24 tray isolator and VTD shown to the right.

Our laboratory cGMP tray dryers provide a safe, hygienic and cost effective small-scale tray drying solution when used with our barrier isolator system range.

In addition to the VTD Barrier Isolator, within our Standard Group of companies we also design and manufacture "stand-alone" Vacuum Tray Dryers with 6, 12 and 24 shelf designs as standard.

Enquire Now

Design Features

  • Rigid, high integrity barrier isolator system
  • Flexible Cost effective barrier isolator system
  • cGMP - Designed for sterile & non-sterile processing
  • Full Vacuum and excellent heat transfer drying
  • Up to OEB-5 Category Containment.
  • Complete Inside area access.
  • Exhaust Double Filtration.
  • Chamber Auto Pressure ControlSystem.
  • Retractable Flexible spiralfor washing.
  • VTD Can be integrated with Isolator chamber.
  • VTD process interlocks with Isolator operation.
  • Hot water circulation with Auto Control and Temperature Sensors.
  • After process safety features for VTD door opening.
  • Vacuum and NitrogenDistribution arrangement inside VTD.
  • Hot water flowing lines VTDshelfs to attain Uniform Temperature Distribution Inside VTD.
  • Customized design of 1 Tray,2 Tray, 3 Tray, 4 Tray, 8 Tray, 12 Tray, 16 Tray 24 Tray and etc.
  • VTD Tray handling devices.
  • Equal tray distribution arrangements during filling.

Technical Specification

  • ISO-8 Environment inside.
  • MOC SS 316 L/ StanCoat-100/ETFE Coating/ Hastelloy.
  • Inside area access through Glove Ports.
  • SS mirrors to view the corners and edges.
  • Washable Pre Filter arrangement.
  • Full cladding on front side for aesthetic look of the Isolator.

Operational Benefit

  • Full pressure control with alarms
  • Clear visibility during operation and cleaning
  • Operator safe environment

Applications

  • Sterile substance processing
  • Drying of highly corrosive solvents
  • Pharmaceutical & Chemical substance processing
  • API Industry.
  • Chemical Industry.
  • Especially used for handling High Potent chemicals.
  • Especially used for handling Hazardous materials.

Supply Options

  • Operator Half Suits
  • Interlocked Doors
  • Automated Operational Cycling; Testing, Cleaning etc
  • 6, 12 and 24 Tray designs
  • Flexible or Rigid Barrier Isolator systems
  • Special design to handle Light Sensitive Products.
  • Inside Oxygen control System.
  • Inside Rh Controlled Systems.
  • Inside Temperature Control systems.
  • WIP and CIP Systems
  • Surface Finish in Matt or Mirror.
  • Can be integrated to Weighing Balance.
  • RTP Integration.
  • Bin Integration
  • Poly Bottle integration.
  • Customized design based on specific user requirements.
  • Manual Control, Semi-Automatic Control and Automatic Control Options for VTD Process.
  • VTD Body can be welded to Isolator chamber or can be designed with Dismantlable arrangement.
