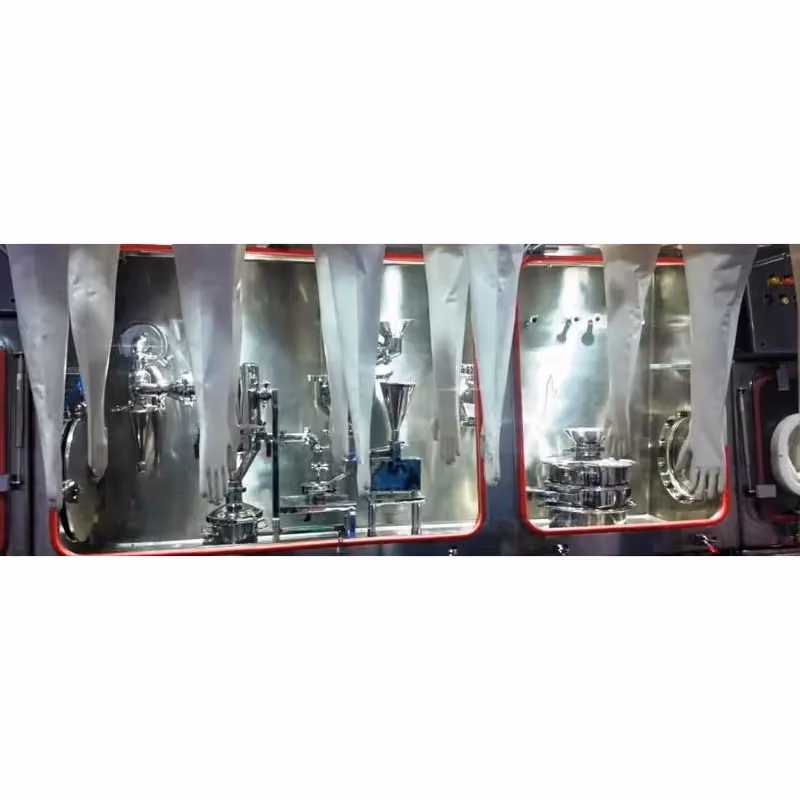

Schematic Industries manufacture Jet Mill Systems. The main advantage of a jet mill over other kinds of mills is that you can grind a friable or crystalline material to 1 ���10 microns average particle size and classify in a very narrow particle size range at the same time. Furthermore, there are no moving parts to wear out or generate heat in a jet mill and no screens to plug or be punctured. Also, as there is no attritional heat because of the cooling effect of the jets, jet mills have won favour in many pharma plant operations.

A jet mill can be used in multiple applications, over and above particle size reduction. Typically Jet Mills are used to mix multiple powders into a perfect homogeneous blend. Furthermore, one product may also be coated by another and/or liquid additives can be injected under pressure through one or more atomising spray nozzles either directly in to the main grinding air inlet or into the vortex at the mill exit. Another use of the jet mill is for polishing the sharp edges on particles to make them flow or compress better and powders containing water or solvents can be flash dryed with hot air or super-heated steam.

Enquire Now

Design Features

  • No moving parts
  • Grind friable or crystalline materials to 1-10 microns average particle size
  • No screens to plug or be punctured
  • No attritional heat
  • Low pressure system

Technical Specification

Operational Benefit

  • Contamination Elimination; No Moving / wearing parts
  • Clear visibility during operation and cleaning
  • Operator SAFE environment
  • Very narrow particle size range is possible
  • Consistent particle size
  • Natural cooling effect of jets
  • Multi-streaming of material fed into the jet mill for perfect homogeneous blending
  • Fewer maintenance/operational issues with Low pressure systems as well as lower cost.

Applications

  • Substance particle size reduction
  • Blending of powders
  • Product coating
  • Liquid additive mixing
  • Particle polishing for better flow and/or compression characteristics
  • Flash drying of products using hot air or super-heated steam

Supply Options
