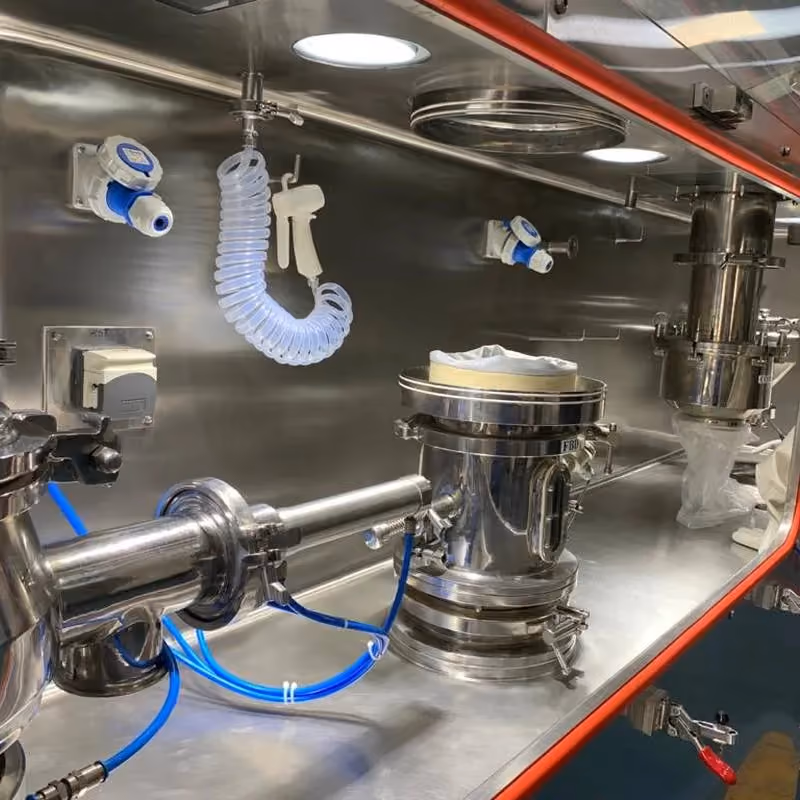

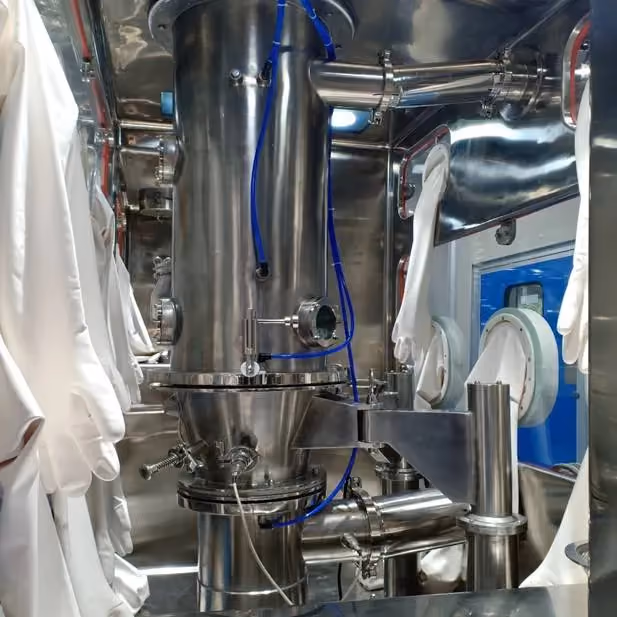

Schematic Engineering Industries design and manufacture barrier isolators with integral Fluid Bed Dryers (FBD's).

Fluid bed dryers are extensively used in the pharmaceutical industries to reduce the moisture content of pharmaceutical powder and granules.

The equipment works on a principle of fluidization of the feed materials

The fluidization process works with hot air introduced at high pressure through a perforated bed of moist solid particulate. The wet solids are lifted from the bottom and suspended in a stream of air (fluidized state).

Heat transfer is accomplished by direct contact between the wet solid and hot gases and the vaporized liquid is carried away by the drying gasses.

Enquire Now

Design Features

  • Conforms to cGMP
  • 316 Stainless Steel construction
  • ISO5 to ISO8 class design
  • OEB4 and OEB5 levels
  • 316 S/S construction
  • Capacity from 2-20 Kg/hr
  • RTP / polycoater can be used for material charging and discharge
  • PLC for operating and monitoring
  • Negative and positive pressurised chambers
  • Auto pressure test (ISO 10648-2)
  • Pass box and intermediate door pneumatic interlocks
  • Main chamber glass door is electro and pneumatic interlocks

Technical Specification

  • SS 304 isolator external cladding
  • Exhaust blow air with multi positional valve
  • Fitration through Double HEPA (safe change)
  • Elipical glove ports with Hypalon Gloves
  • Drain Tank
  • PTFE wash gun for cleaning
  • Interlocking between pass box and intermediate door
  • Magnetic gauges for pressure monitoring
  • Tower lamp for Isolator health and contamination breach
  • FBD and RMG as standard workstations
  • Leakproof toughen Glass door

Operational Benefit

Applications

  • Food Industries
  • Chemical Industries
  • Formulation

Supply Options

  • EPDM Gloves
  • Butyle Gloves
  • PU Gloves
  • Split Glove Design
