Schematic Industries are specialists in providing material handling solutions.

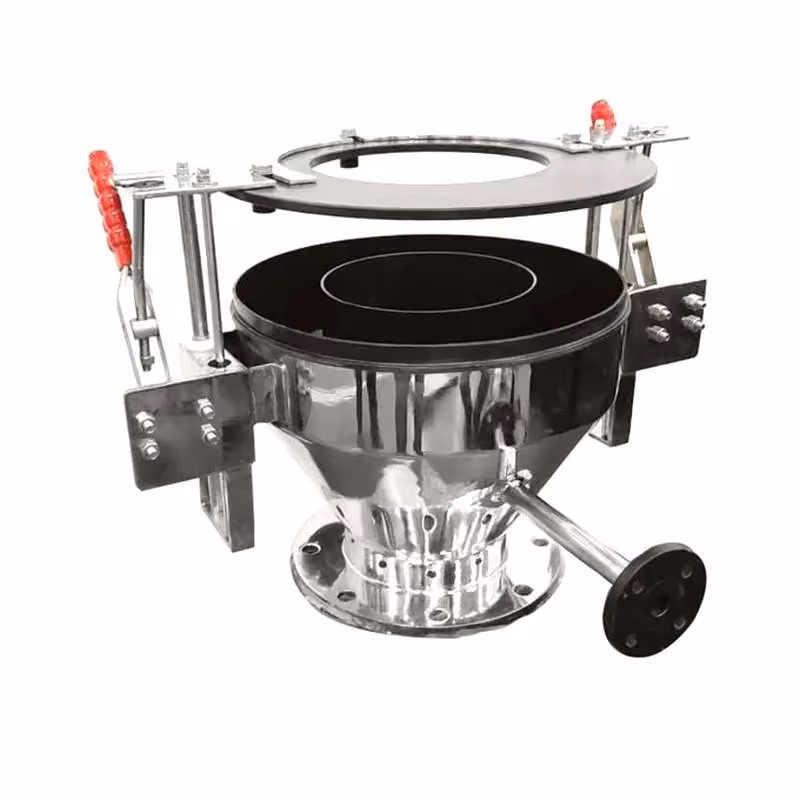

The Schematic Big Bag Spout Docking Station is a manual system typically supplied in the cone (as shown) and straight design formats.

It is typically integrated into a hopper or conveying line system, however it can also be connected to a reactor nozzle or any processing equipment such as a blender.

The Big Bag Spout Docking Station is designed based on the 'spout diameter', which is typically from 200mm (8") to 400mm (16").

We also supply alternate Big Bag dispensing systems. For further information, see

  • Big Bag Discharge Station - Pillar Type
  • Big Bag Discharge Station - Frame Type

Enquire Now

Design Features

  • cGAMP Automated or cGMP Manual operation
  • Robust, polished 316 s/s construction
  • Dust free connection

Technical Specification

  • 316 / 304 Stainless Steel Construction
  • Dust free connection
  • Spout Sizes - Diameters 200 - 400mm
  • Steep or Gentle cone incline designs depending on powder/tablet/product

Operational Benefit

  • Operator safe dispensing
  • High integrity of bag contents maintained

Applications

  • Pharmaceuticals, Chemicals and Bulk-Drug/API powder handling
  • Batch and Production dispensing operations
  • cGAMP operations

Supply Options

  • Stancoat 100 (chemical resistant coating)
  • Automatic clamping design
  • Gentle cone incline for tablet dispensing.
